In this tutorial, we’ll show the actual performance impact of OpenResty XRay when tracing Rust applications. We will watch CPU, memory, load average, traffic throughput, latency, etc. when OpenResty XRay is actively sampling and analyzing the target system. OpenResty XRay is a non-invasive diagnostic system based on our own dynamic tracing technology. It has minimal performance overhead. It can analyze running applications in real-time to help pinpoint the root causes of various issues.

Process Performance Before Running Analysis

How will OpenResty XRay’s Agent affect a target Rust application’s performance? Let’s find it out in this video.

Let’s run the top command to check the process list.

Right now, the Agent of OpenResty XRay is not running any analysis. So its performance impact on the target processes is strictly zero. Thanks to dynamic-tracing technologies. It never modifies the target processes in any way.

Look at this process named rocket-server. We already know it is written in Rust.

Its CPU utilization is about 73%.

The load average of the last minute is 0.86.

The CPU idle percentage is 74.3%.

The currently available memory is about 1566MB.

Let’s instruct OpenResty XRay to actively analyze that Rust process. Then we can see its performance impact on the target.

Performance Impact When the Analyzer is Running

Open the OpenResty XRay web console in the web browser.

Make sure it is the right machine you are watching.

The production mode is for analyzing online production environments. It tries hard to minimize the performance impact on the target applications and servers. It may take longer to analyze though.

Go to the “Guided Analysis” page.

Let’s select “High CPU usage”.

Click on “Next”.

Select the Rust application.

Select the process that consumes 74% of the CPU resources. This is what we saw previously in top.

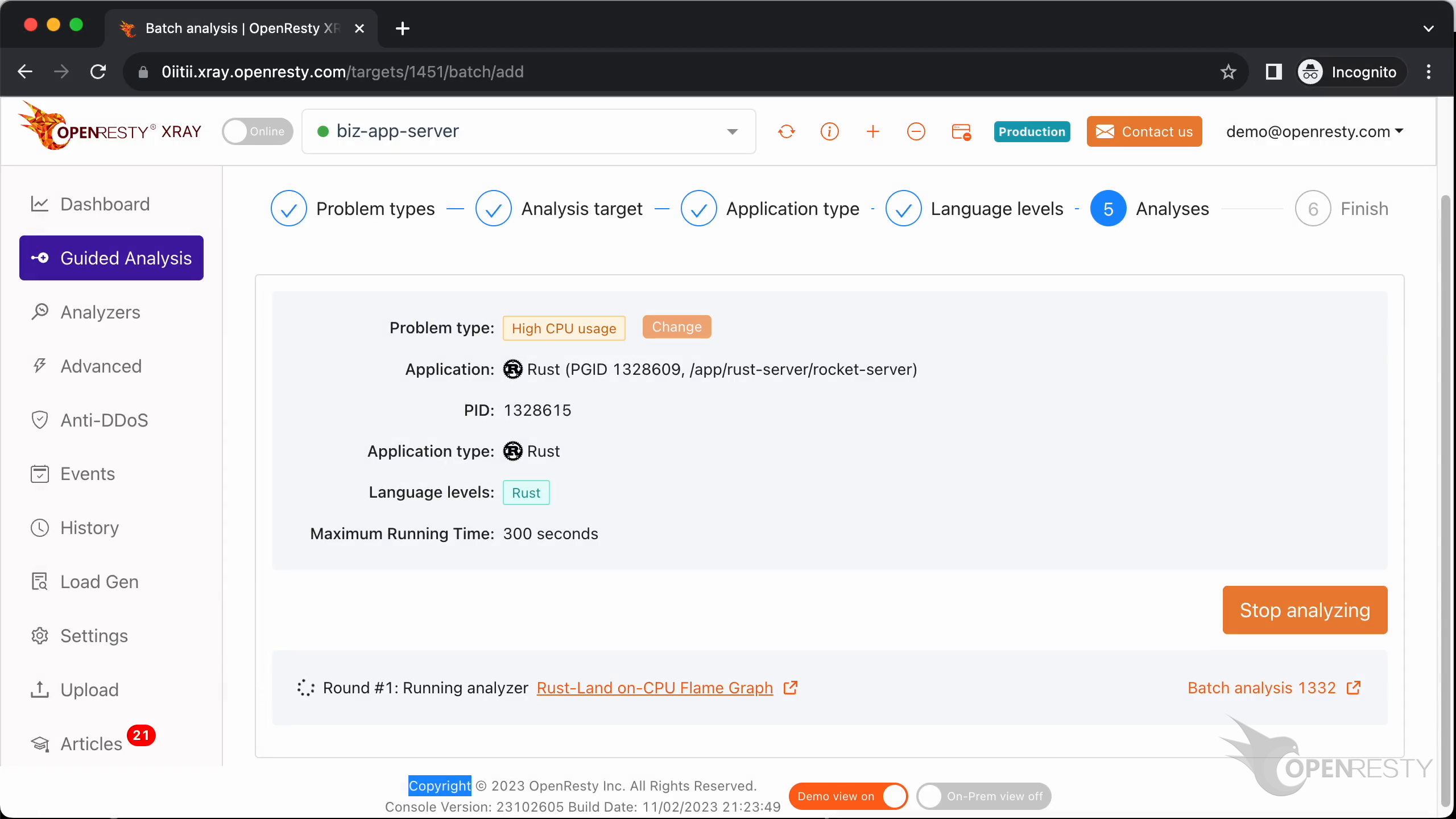

Let’s start analyzing.

The system will keep performing different rounds of analysis.

It will keep sampling for 300 seconds, or 5 minutes.

Let’s return to the terminal window. We can see that CPU utilization is around 74%. It went up less than 1%.

The load average of the last minute is 0.92 now, increased by 0.06 from 0.86.

The CPU idle percentage is 74.5%, nearly the same as the previous value 74.3%.

The currently available memory is about 1564MB, a decrease of about 2MB from before. There is no significant change from before.

Impact Measurement on Throughput and Latency

We measured the maximum server throughput in different cases. Here’s what we found.

Without installing the OpenResty XRay Agent, the maximum throughput is about 56600 requests per second.

When the Agent is installed but not running the analyzers, the request rate remains the same.

When the analyzers are sampling, the request rate is around 55300 RPS, merely 2.2% lower than when not doing analysis. It can be seen that running the analyzers for performance analysis has minimal impact on the maximum throughput of the target process.

Here is the benchmark showing the impact on request latency during the sampling process. And this is what we found in comparison.

Without installing the OpenResty XRay Agent, the average request latency is 37.79 microseconds.

When the Agent is installed but the analyzers are not running, the average latency remains unchanged.

When the analyzers are running, the latency becomes 38.91 microseconds. An increase of only 1.12 microseconds. It is evident that running the analyzers for performance analysis has a minimal impact on the latency of the target process.

The overhead of automatic analysis in the “Insights” page and “Dashboard” page is similarly small and tiny.

What is OpenResty XRay

OpenResty XRay is a dynamic-tracing product that automatically analyzes your running applications to troubleshoot performance problems, behavioral issues, and security vulnerabilities with actionable suggestions. Under the hood, OpenResty XRay is powered by our Y language targeting various runtimes like Stap+, eBPF+, GDB, and ODB, depending on the contexts.
