In this tutorial, we’ll show the actual performance impact of OpenResty XRay when tracing PHP applications. We will watch CPU, memory, load average, traffic throughput, latency, etc. when OpenResty XRay is actively sampling and analyzing the target system. OpenResty XRay is a non-invasive diagnostic system based on our own dynamic tracing technology. It has minimal performance overhead. It can analyze running applications in real-time to help pinpoint the root causes of various issues.
How will OpenResty XRay’s Agent affect a target PHP application’s performance? Let’s find it out in this video.
Let’s run the
top command to check the process list.
Right now, the Agent of OpenResty XRay is not running any analysis. So its performance impact on the target processes is strictly zero. Thanks to dynamic-tracing technologies. It never modifies the target processes in any way.
Look at this process named
Its CPU utilization is about 50%.

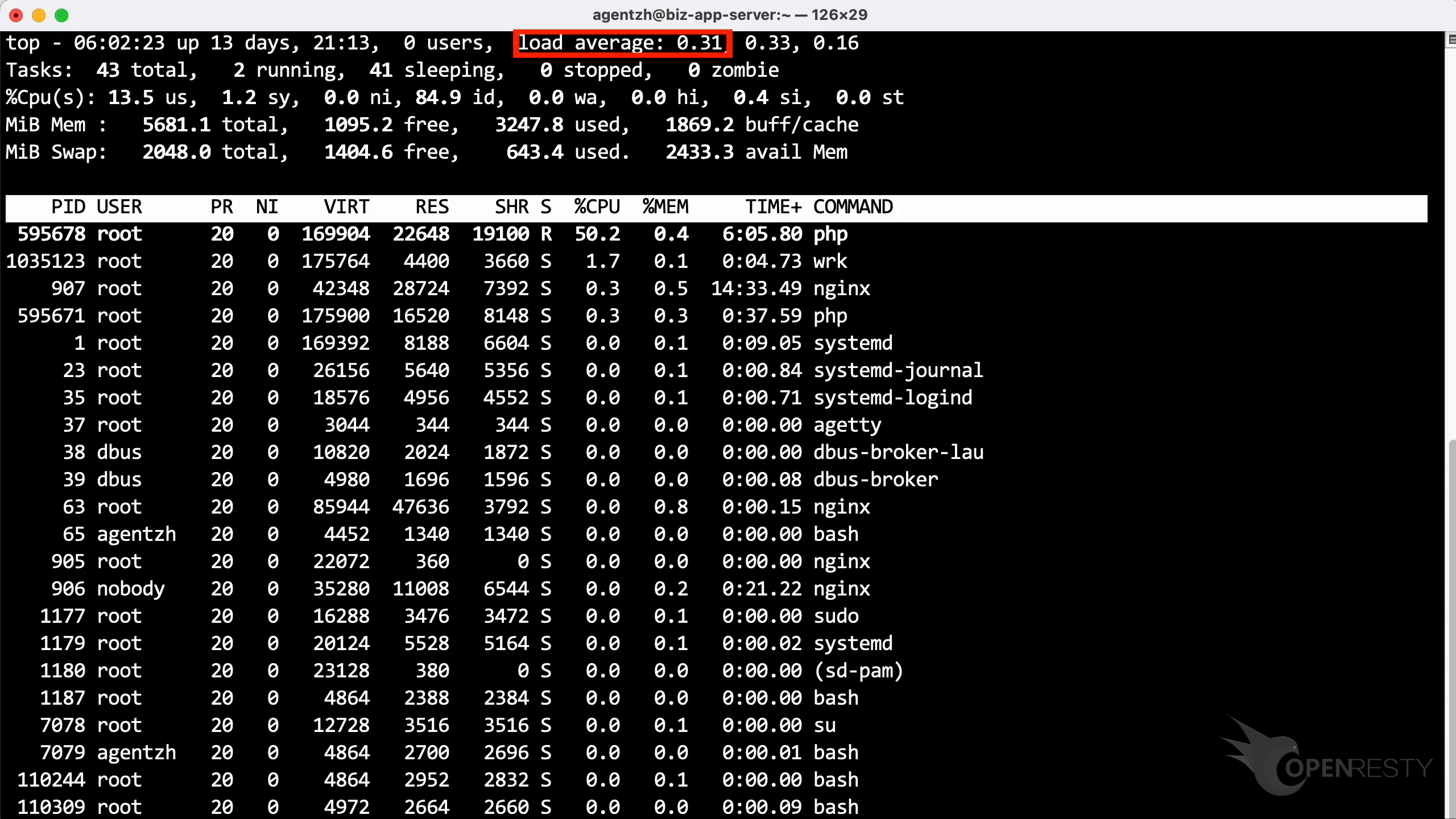

The load average of the last minute is 0.31.
The CPU idle percentage is around 85%.
The currently available memory is about 2433MB.
Let’s instruct OpenResty XRay to actively analyze that PHP process. Then we can see its performance impact on the target.
Open the OpenResty XRay web console in the web browser.
Make sure it is the right machine you are watching.
The production mode is for analyzing online production environments. It tries hard to minimize the performance impact on the target applications and servers. It may take longer to analyze though.
Go to the “Guided Analysis” page.
Let’s select “High CPU usage”.
Click on “Next”.
Select the PHP application.
Select the process that consumes 51% of the CPU resources. This is what we saw previously in
Let’s start analyzing.
The system will keep performing different rounds of analysis.
It will keep sampling for 300 seconds, or 5 minutes.
Let’s return to the terminal window. We can see that CPU utilization is 53%. It went up about 3%.
The load average of the last minute is 0.41 now, increased by 0.1 from 0.31.
The CPU idle percentage has increased by 1% to 85.9%.
The currently available memory is still about 2433MB. There is no significant change here.

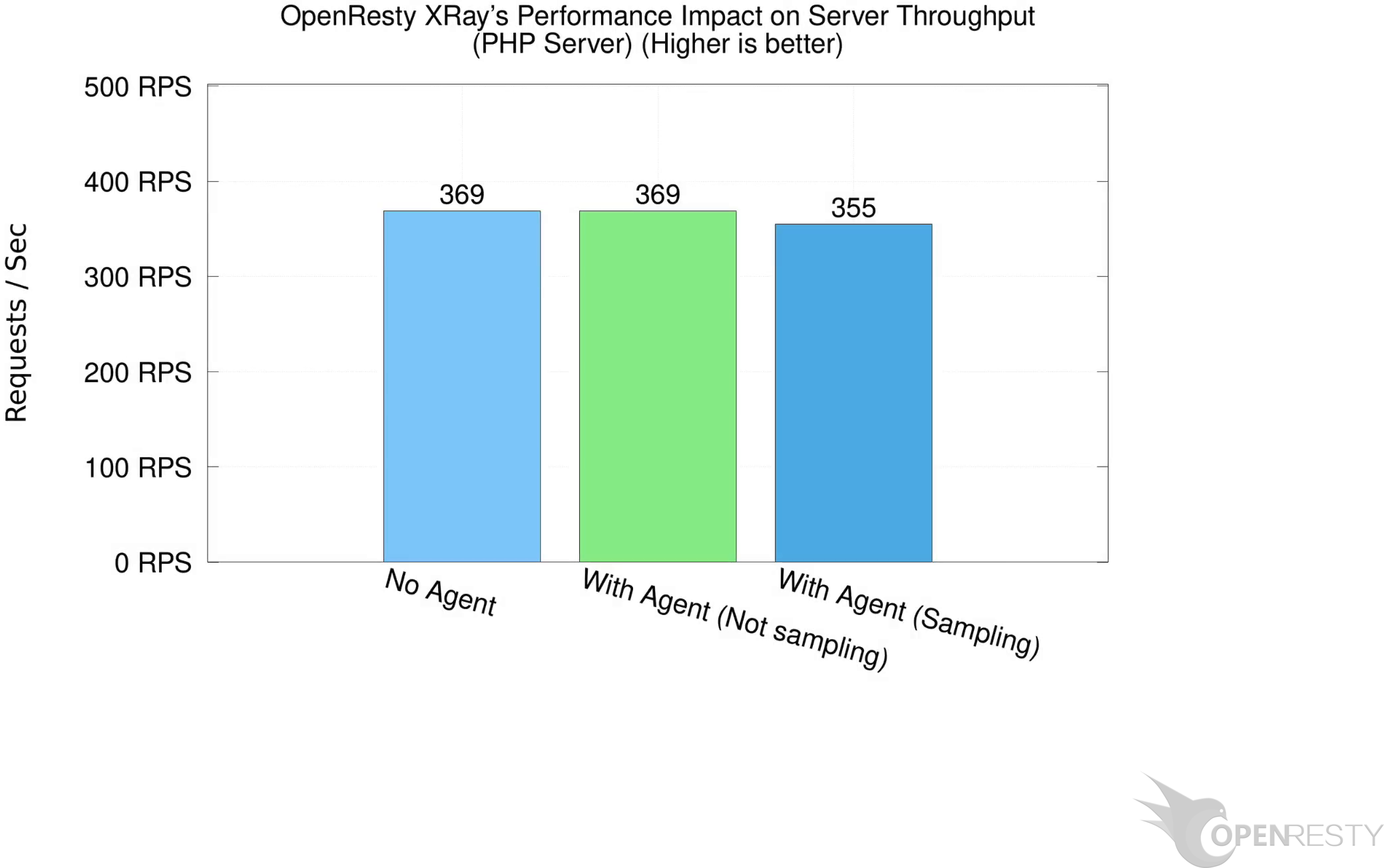

We measured the maximum server throughput in different cases. Here’s what we found.
Without installing the OpenResty XRay Agent, the maximum throughput is about 369 requests per second.
When the Agent is installed but not running the analyzers, the request rate remains the same.
When the analyzers are sampling, the request rate is around 355 RPS, merely 3.7% lower than when not doing analysis.
It can be seen that running the analyzers for performance analysis has minimal impact on the maximum throughput of the target process.
Here is the benchmark showing the impact on request latency during the sampling process. And this is what we found in comparison.
Without installing the OpenResty XRay Agent, the average request latency is 5.36 milliseconds.
When the Agent is installed but the analyzers are not running, the average latency remains unchanged.
When the analyzers are running, the latency becomes 5.58 milliseconds. An increase of only 0.22 milliseconds.
It is evident that running the analyzers for performance analysis has a minimal impact on the latency of the target process.
The overhead of automatic analysis in the “Insights” page and “Dashboard” page is similarly small and tiny.
OpenResty XRay is a dynamic-tracing product that automatically analyzes your running applications to troubleshoot performance problems, behavioral issues, and security vulnerabilities with actionable suggestions. Under the hood, OpenResty XRay is powered by our Y language targeting various runtimes like Stap+, eBPF+, GDB, and ODB, depending on the contexts.
If you like this tutorial, please subscribe to this blog site and/or our YouTube channel. Thank you!
